Sector Selector

Use the Brilliance Sector Selector to create specific sectors or zones that can be controlled independently from a single transformer. The Sector Selector can split a single transformer into four separate zones with up to 200 watts to each sector.

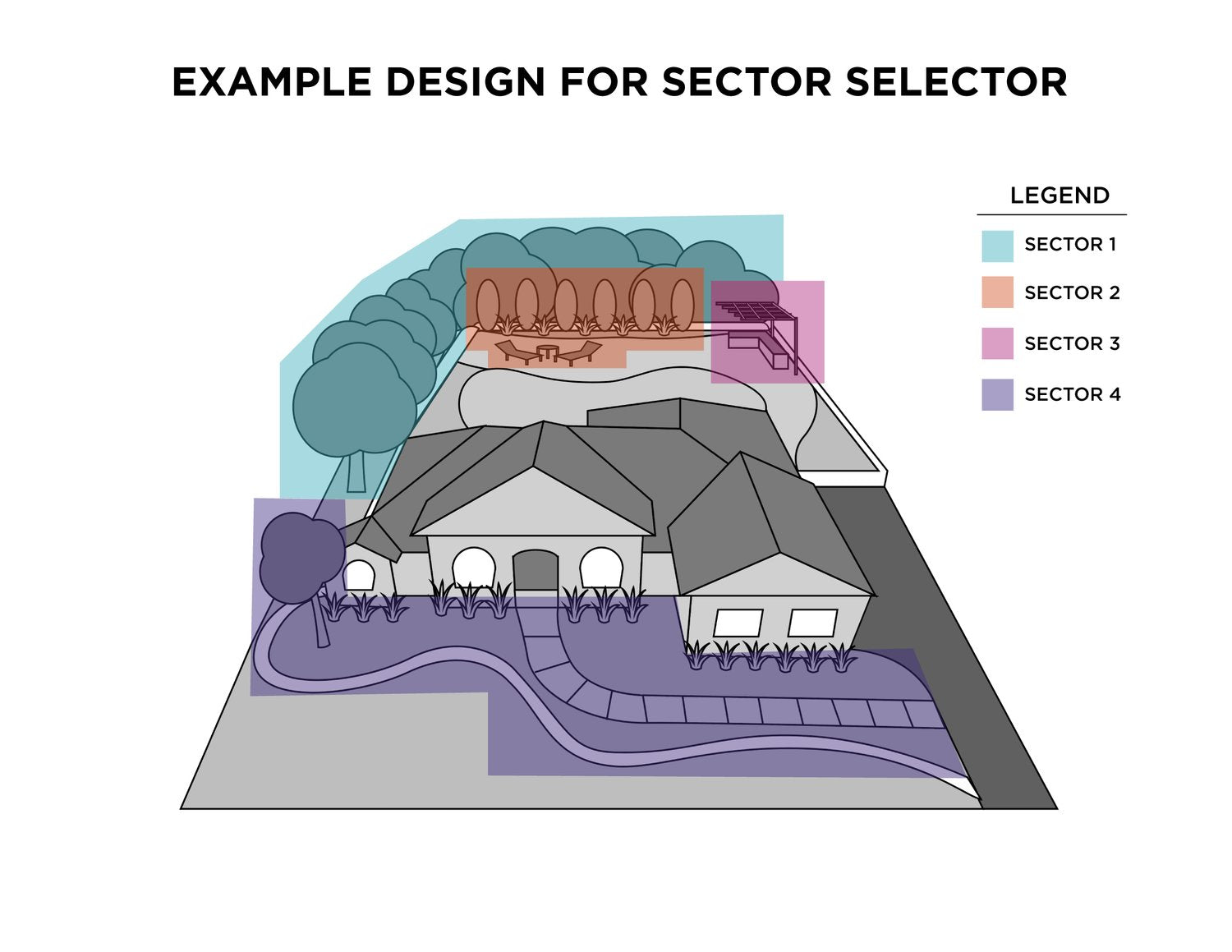

Use these zones to separate lighting schedules and scenarios to create special scenes or layers of light in your landscaping. For example, separate a front yard from a back yard, or independently control lighting for water/architectural features, outdoor kitchens, around pool and spa areas, outdoor decks or seating areas, or path and garden lighting.

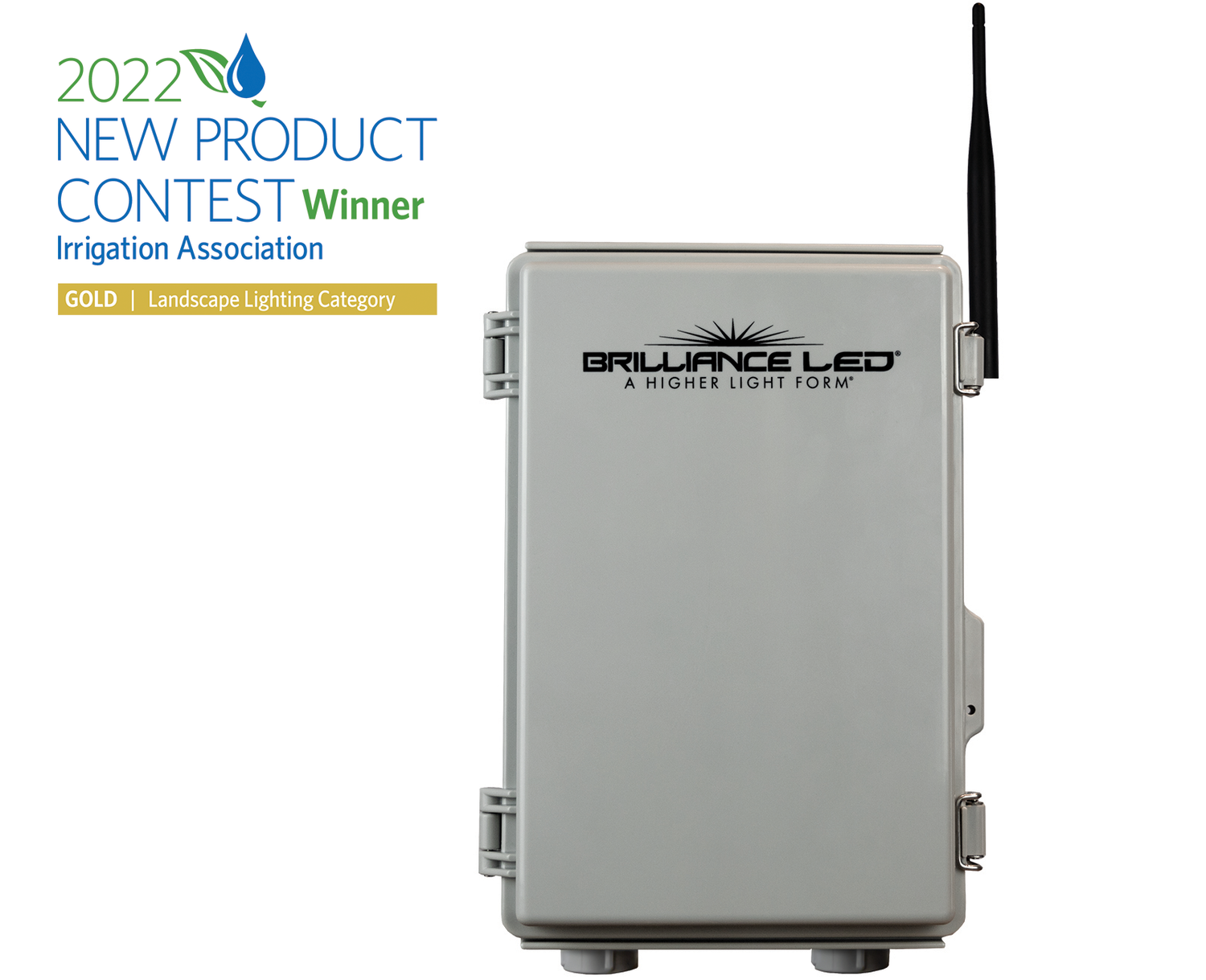

Brilliance LED’s Sector Selector was selected as the Gold Winner for the Landscape Lighting Category of the 2022 New Product Contest hosted by the Irrigation Association.

FEATURES:

• Compatible with any transformer and works on AC/DC

• Create up to four zones on a single transformer, with up to 200 Watts per sector, and manage with the Brilliance Smart App

• Fitted with two 3/4” PVC conduit adapters to accommodate four 12-2 AWG cables

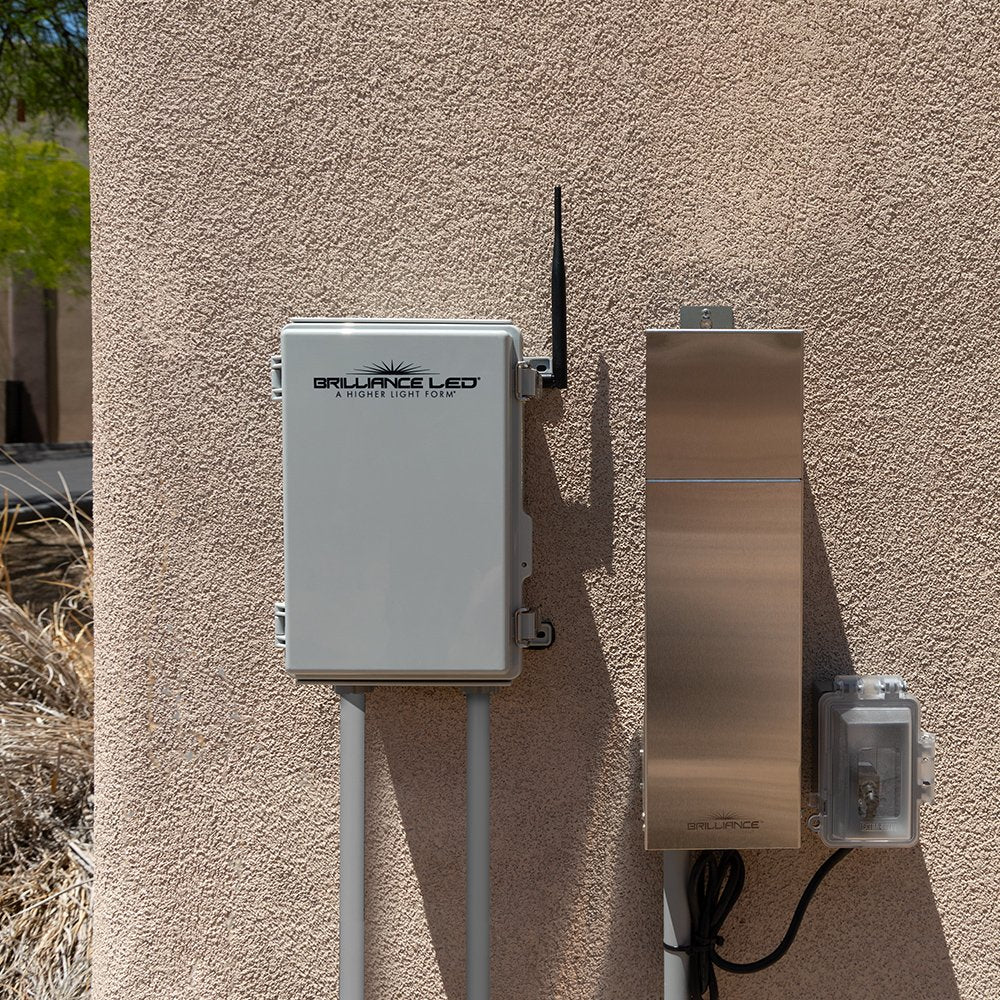

• Installs on the low-voltage side of magnetic transformer

• Unit receives its power through Sector 1 and draws 5 Watts in order to function

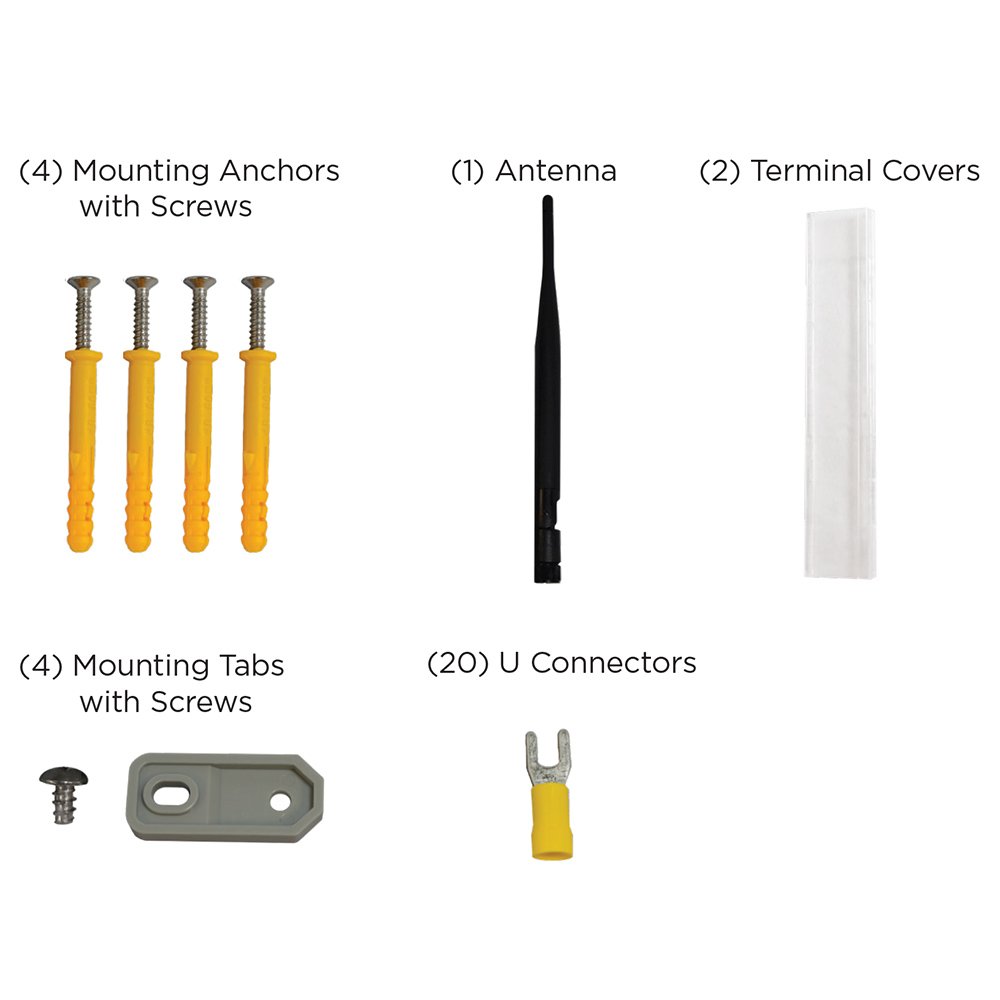

• Includes: Sector Selector Enclosure; (4) Enclosure Mounting Tabs with Screws; (4) Exterior Mounting Anchors with Screws; High Range Antenna; (20) U Connectors; (2) Terminal Covers; Sector Chart; Product and Installation Guide

• ETL Certified
